Product description

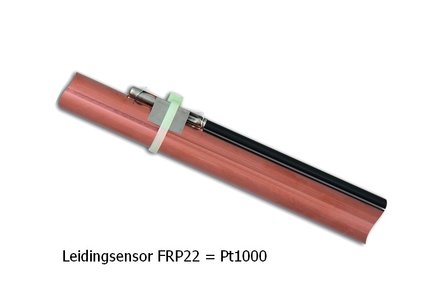

Sensor for measuring pipe temperature. Attach to the pipe using the supplied mounting clamp.
Applications
For horizontal pipe, mount at the top. The 2-wire signal cable may be extended up to 50 meters.
Specifications
- Type: Pt1000-FRP22
- Temperature: -20...+90 ºC
- Sensor body: metal
- Tip: ø 6 mm, long 45 mm
- Mounting material: included
- Included: heat transfer paste
- Cable: 2.5 m (2-wire)
- Cable material: PVC
*Note: when purchasing some products on our webshop, basic electrical engineering knowledge is required (for installation).
