Product description

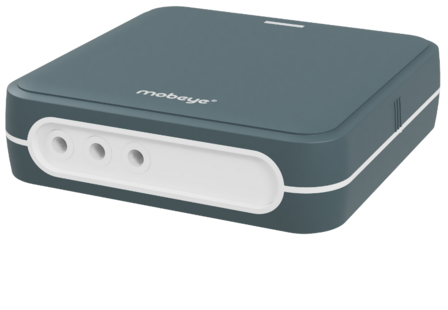

Read out, alarm and log sensor values with the Mobeye SISTM LP.
The Mobeye SISTM measures the values of almost every industrial sensor. The inputs of the SISTM read the output values and convert them to meaningful parameters. If (min./max.) limit values are set and they are exceeded, the contacts receive an alarm message. Periodically, sensor values are logged and displayed in an online portal.
Features:
- For reading universal sensors.
- Alarm via app, call, SMS and email.
- Two alarm inputs for reading out two sensors
- Battery powered
Because the Mobeye System LP is completely battery powered, it is also important that it is monitored properly. For this we have the
Twinlog CM guard; a battery guard that accurately observes the analogue values.
Applications
The CML4015-LP is fully battery powered and self-contained, providing power to both the SISTM and the sensors. The CML4015-LP measures sensor values periodically, with an adjustable interval and warm-up time of the sensors. The measured values are logged and if the alarm limit is under or exceeded, an alarm notification follows.
Operation:
1. Select the appropriate sensor and place it simultaneously with the Mobeye SISTM.
2. Configure the warm-up time, calibration value, log frequency alarm limits and the other settings. Also designate contacts for alarms.
3. If alarm limits are exceeded and or undershot, an alarm notification is immediately sent to the specified contacts.
Do you prefer module that uses external power for the SISTM and sensors? See the
2-channel module CML4015-HP here.
Specifications
- Contents: CML4015-LP, incl sim card.
- Operation: On and off via button, time schedules and SMS.
- Inputs: 2x analog input
- Output: Open collector (with external voltage), max 200 mA. Switches on alarm or after incoming SMS/call.
- Power supply: 6-12V (7.2V battery pack available as accessory)
- Sensor power supply: 5V / 15V.
- Battery life: Up to 10 years depending on use
- Dimensions: 130 x 85 x 60 mm
- IP rating: IP66
- Connectivity: 4G LTE-M + 2G EGSM Quad band.
Tip: If you are looking for a water detector that is also suitable for other liquids, we recommend
the GSM detector with float.
See the following link to view the SIM card cost of the standard SIM card included from the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
