Product description
Ready-to-use foil set to install foil heating under a parquet, laminate or plastic floor for additional heating. The underfloor heating foil is extremely thin (0.3 mm) and is always laid with the energy-efficient Ebisol insulation board for the best result. The package includes the WiFi ready thermostat EB-Therm 500. If you install the EB-Connect WiFi accessory, you can also operate the underfloor heating via the Ebeco Connect app.
Applications

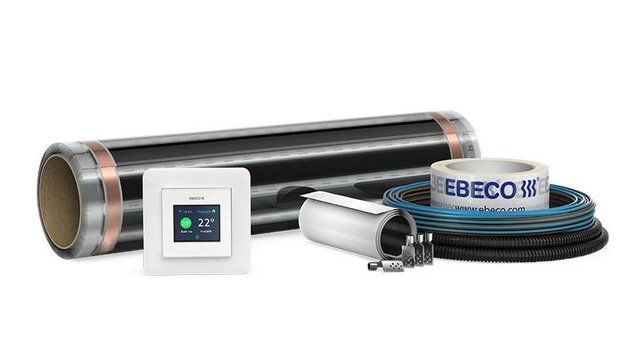

Foil heating set | Contents of the set
- Underfloor heating foil
- Thermostat EB-Therm 500
- Tape
- Connection terminals
- RTK cables
- Spiral tube

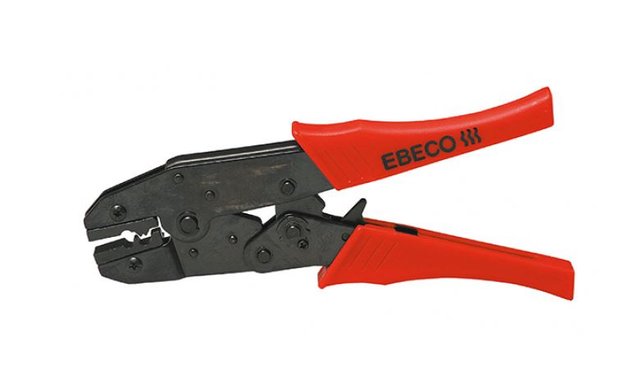

- Crimping pliers

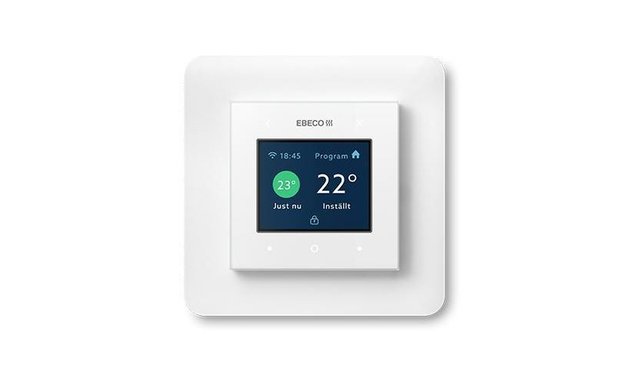

Foil heating set | Energy-efficient thermostat
The EB-Therm 500 thermostat is easy to install and operate. With its clear start-up guide and clear menu system, it is easy to operate.
EB-Therm 500 has individually adjustable and energy-saving programs, allowing you to easily control underfloor heating efficiently from an energy-saving perspective. The thermostat has room and floor sensors and a function that prevents the heat from exceeding the recommended temperature of the wooden floor +27 ° C. The EB-Therm 500 supports eight different sensor types and fits into the most common frame systems.
Foil heating set | Installation
The underfloor heating foil is durable, reliable and extremely thin - only 0.3 mm. Foil heating can be installed in dry rooms on top of existing floor structures, such as concrete or chipboard. The underlying plastic mat must always be removed for installation. The heating foil is connected to each other with the supplied double-insulated connection cables and terminals. The crimping pliers are included for this purpose.
Specifications
- Subfloor: concrete, chipboard
- Floor material: wood, laminate, plastic mats
- Room type: ONLY dry rooms
- Foil thickness: 0.3 mm
- Total width: 430 mm
- Heated width: 400 mm
- Power: 65 W / m²
- Lowest installation temperature: + 5 ° C
- Connection voltage: 230 V
- Approval: CE
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
