Product description
Thin floor heating mat for application in tile adhesive or level, under tile floor. The special dual core heating cable with earth screen prevents electromagnetic radiation.
Applications

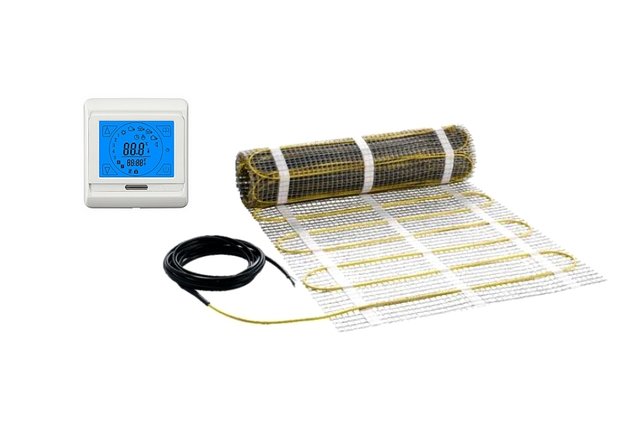

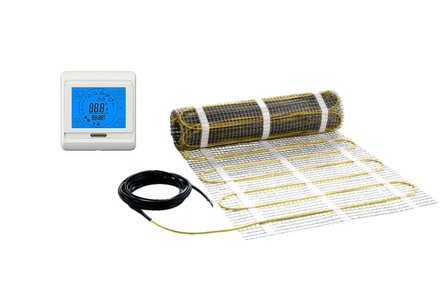

Complete with touch thermostat
The floor heating mat is 50 cm wide and available in various lengths, starting at 1 meter. Included is a modern

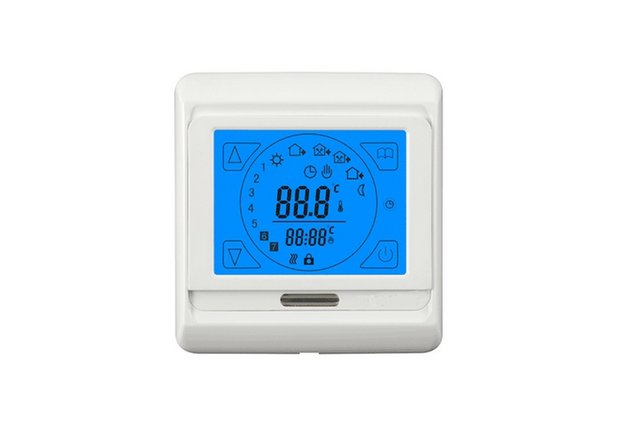

Touch Thermostat (built-in version) with floor sensor. (specifications via the link above)

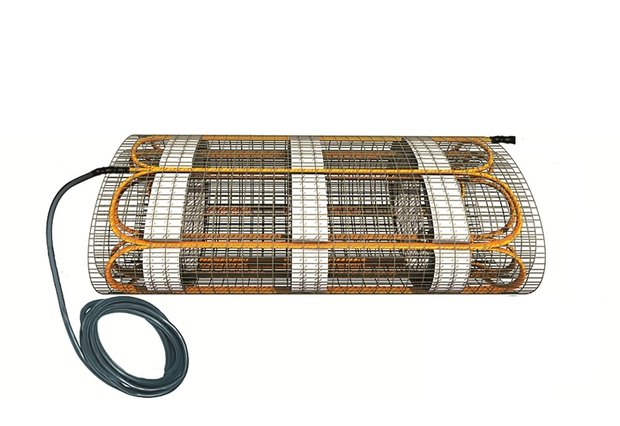

Heating cable on self-adhesive mesh mat
The heating cable is attached to the mesh mat, which has an adhesive layer on the underside. At the beginning of the mat is the connecting wire, containing the connection for phase, neutral and ground. All electrical connections are waterproof, making this heating mat safe for use in a bathroom floor.
Specifications
- Connection voltage: 230 Volt
- Power: 155 Watt/ m²
- Outer jacket: hard PVC
- Connection cable length: 3 m
- Protective earth connection: yes
- Installation height: <3.2 mm
- Back of mat: self-adhesive
- Hallmarks: VDE + CE
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
