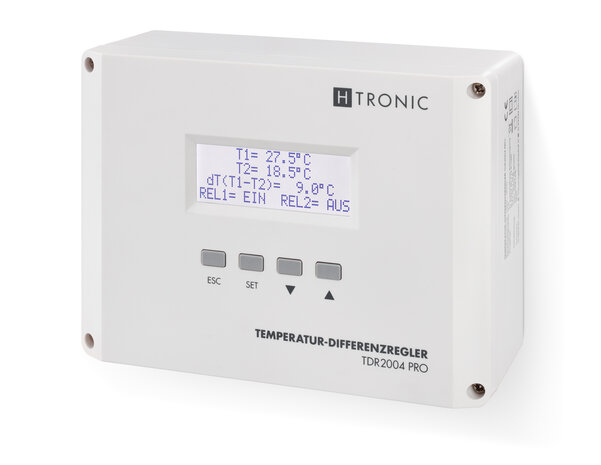

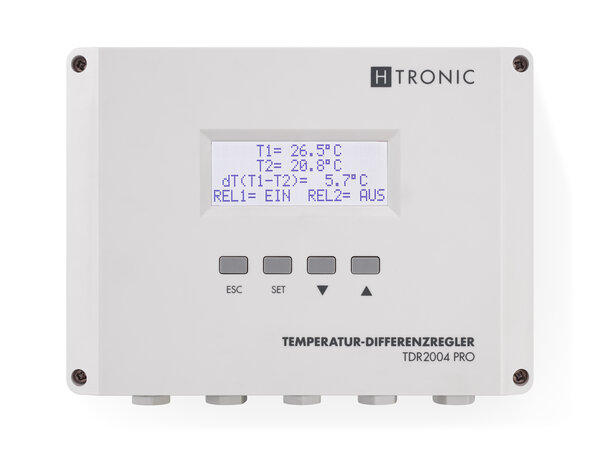

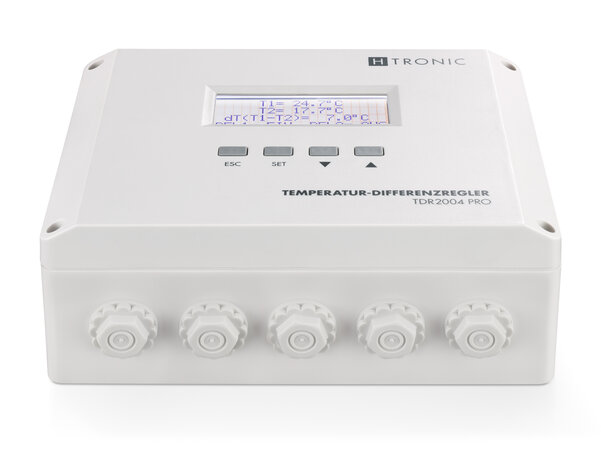

Differential Temperature Controller TDR2004 PRO

Product description

• New, modern design
• Clear menu navigation for setting values
• Push buttons with clear feedback and button click
• Large display with indication of measured values and temperature difference
• Switching capacity up to max. 3000 W total (resistive load)
• Extended measuring range of
• 99 to +850 °C
• Display illumination can be switched off
• Sensor calibration possible
• Relay status display in plain text

Applications

Specifications

• Dimensions: 161 x 120 x 62 mm
• Weight: 420 g
• Operating voltage AC: 230 V
• Frequency: 50 Hz
• Power consumption: 3 W
• Switching power (resistive load): max. 3000 W
• Switching voltage per relay (AC): max. 250 V
• Current per relay (AC): max. 16 A
• Switching voltage per relay (DC): max. 24 V
• Current per relay (DC): max. 16 A
• Measuring range: -99 ... +850 °C
• Measuring accuracy (measured value): +/- 0,5 %
• Step size/resolution: 0.1 °C
• Protection class of housing: IP20
• Temperature difference: 0 ... 30 °C
• Hysteresis: 0.1 ... 10 °C
• Sensor inputs: 2xPt1000
• Output: 2x potential-free relay 5A
• Sensor R offset: 0 ... 50 Ohm
• Sensor T offset: -50 ... +50 °C
