Product description

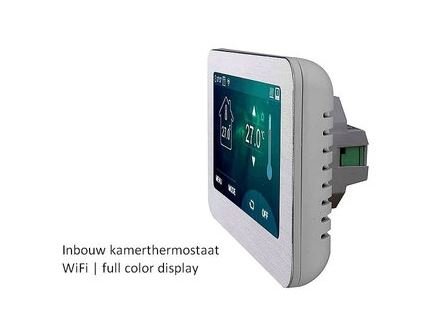

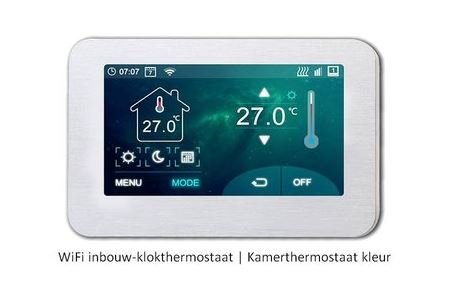

Room thermostat with color display
Flush-mounted thermostat with color display. For controlling electric and central heating, based on set temperature and time.

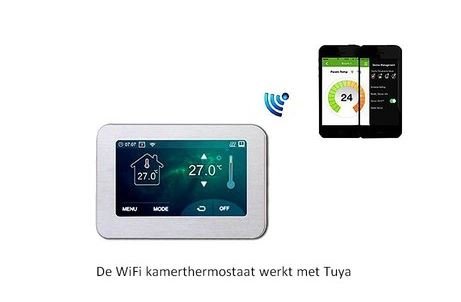

Heating control with smartphone

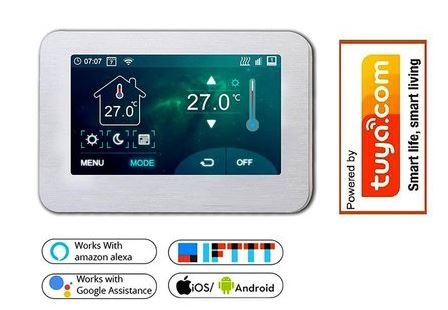

You can control this modern clock thermostat via Wi-Fi, using an app from Tuya. It can also be paired with other devices via Tuya and/or IFTTT. The thermostat is also supported by Tuya Google assistant, Alexa and Siri.
The handsome room thermostat is designed for placement in an (existing) 230 Volt wall box. Thanks to its voltage-free switching contact, it is also suitable as a replacement for conventional a 2-wire central heating control.
Applications
Menu driven ease of use
Advanced built-in full color touchscreen thermostat with nice and clear graphic display. Thanks to clear icons pleasant to use. The menu-driven operation works easily in practice.
The thermostat has both an internal sensor and an external (floor) sensor, which is included.
- Easy mounting in normal wall-mounted box.
- Control via App, 7 x 4 switching times per week.
- Floor sensor, room sensor, or combination of both.
- Temperature value is given in Celsius.
- Adjustable hysteresis and backlight.
- Open window detection when using the room sensor.
- Combines with other Tuya-compatible products.
- Menu driven and manual programming.
- Via TuyaSmart app (minimum IOS9, Android 4.2).
- Linkable with IFTTT, Google Assistant, SIRI and Alexa.
For central heating and electric (floor) heating.
You can connect electric floor heating, as well as radiant panels, directly to the switching contact of the flush-mounted room thermostat. To do this you must provide the switching contact with 230 Volt (looping through the phase).
Please note that replacing a 2-wire central heating thermostat does require mains power for the display.
Specifications
- Type: Optima W fc
- Type: clock thermostat / touch
- WiFi: 2.4 GHZ, 802.11, b/g/n
- Memory function: yes (EEprom)
- Mounting: wall box (wall)
- Operating voltage: 230 V
- Switching capacity: 3,000 W
- Contact: alternating, voltage-free
- Programs: 7x4 (per week)
- Dimensions: 130 x 86 x 30 mm
- Display: full color, 95 x 55 mm
- Backlight: yes
- Security class: IP30
- Setting range: +5...35 °C
- Accuracy: +/- 0.5 °C
- Room sensor: built-in
- Floor sensor: included
- EN manual: yes
- Quality mark: CE
Simple connection/wiring
terminal 1 + 2 = switching contact
terminal 3 = 230 Volt L (phase)
terminal 4 = 230 Volt 0 (neutral)
terminal 6 + 7 = floor sensor
