Product description

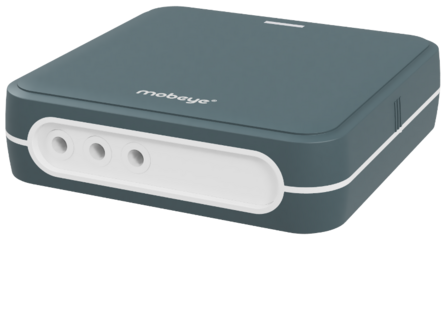

The Mobeye CM-Guard TwinLog is a voltage monitor, ideally used as a battery guard for monitoring batteries and accumulators. In an alarm situation it sends notifications via push message, telephone call, SMS or e-mail. In addition, it logs analog values and sends them to the online portal for display as graph, meter and table.
Features:
- Alarm via app, call, text message and email
- Alarms when analog values are too low or too high
- Complete voltage view in graph
- Power failure monitoring (if connected to external voltage)
- Two AN/NO/NC alarm inputs
- Siren
- Complete device insight when connected to Mobeye Internet Portal
If you are still looking for an analogue sensor our
GSM temperature sensor is the ideal accessory to your installation.
Applications
From deep discharge, a battery usually fails. By setting an alarm limit, the
contacts timely notification to take action. The CML4055 has an (open collector) output that can be used to switch a battery or device.
The TwinLog can operate for long periods on its internal batteries and thus independent of an external power source. If external power is available, it is advisable to connect it. The power supply is then directly monitored as well. And if it fails, a notification follows.
Specific situations in which the Twinlog CM Guard is commonly used are as follows:
- Battery monitoring
- Battery monitoring
- Analog sensors.
If you need an alarm sensor that operates on an external voltage and is capable of continuous measurement of the sensor(s), our CML4015-HP is an alternative option.
Specifications
- Contents: CML4055, 2XCR123 batteries, sim card
- Operation: On and off via button, time schedules and SMS
- Inputs: 2x inputs, configurable as analog/potential-free (NO/NC)
- Voltage ratings: 0-48V with peak voltage up to 64V
- Output: open collector (at external voltage), max 200mA
- Power supply: 2xCR123 lithium batteries/ 12-24V DC (regulated) + 2x CR123 lithium
- Battery life:
- Under normal use: more than 1 year (when battery powered) / more than 3 years (externally powered)
- Dimensions: 94 x 94 x 28 mm
- Connectivity:
- 4G LTE-M + 2G EGSM Quad band
- 2G EGSM Quad band (900/1800 MHz)
See the following link to view the SIM card cost of the standard SIM card included from the manufacturer:
https://www.mobeye.com/sim-portal [mobeye.com]
Tip: Our
outdoor cabinet is the ideal accessory for this application. The exterior is waterproof with a protection rating of IP65 and is ideally capable of protecting the heating system from various weather conditions.
