Product description

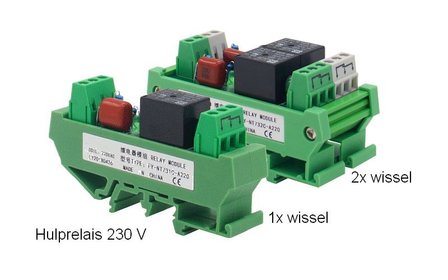

This compact relay is equipped with an LED light, which turns green when 230V is present at the input.
Applications
Expand the thermostat with a switching contact, for 1 or 2 extra groups. A free terminal is available to supply the potential-free switching contact with mains voltage, if necessary.
Specifications
- Coil voltage: 230 Volt
- Contacts: 1x or 2x changeover (NO-NC)
- Own consumption: 0.45 / 0.90 W
- Max. current: 10 A at 230 Vac
- Max. current: 10 A at 30 Vdc
- Status indication: yes (LED)
- Safety class: IP20
- Mounting: on 35 mm DIN rail
- Width: 19 mm / 36 mm
- Approval mark: CE
For driveway and road surface heating, we recommend a control system with switching contacts for 3 groups: Control for
Road Surface Heating.
