Product description

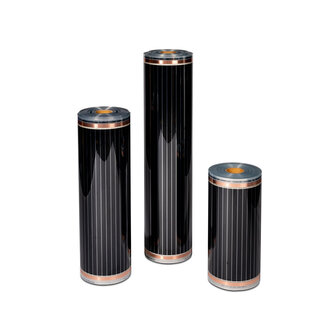

Heating foil is perfect for difficult to divide spaces that cannot be provided with standard sizes.
Applications
Prefabricated sets or cut to length yourself.
This underfloor heating is available for delivery in three different widths. If necessary, you can shorten the foil length, simply with scissors. Then re-insulate the end with tape! (You cannot change the width: so measure carefully before ordering) The foil is available in strips with a FIXED width of 50 cm, 75 cm and 100 cm. Delivery includes 2 insulated connection wires of 15 meters (shortening/cutting permitted).
Installation instructions for heat foil
- Apply to a flat surface, preferably an insulated subfloor
- Do not place heavy or sharp objects on the foil and do not bend the material
- Only apply under uncovered parts of the floor covering
- Multiple strips can be connected to one group with a maximum power of 3500W
Specifications
- Widths: 50 | 75 | 100 cm
- Lengths: 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 900 cm & 100 m
- Power: 50 W
- Working voltage: 230 V
- Principle: Infrared carbon foil
- Material thickness: 3 mm
- Connection wires: 2 x 15 meters (2x1.5mm)
- Quality mark: CE
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
